Name: AC Infinity CLOUDWAY T10, Whole House EC Fan, 1200 CFM, Energy Efficient with Temperature Humidity Controller
SKU: 130596

Description

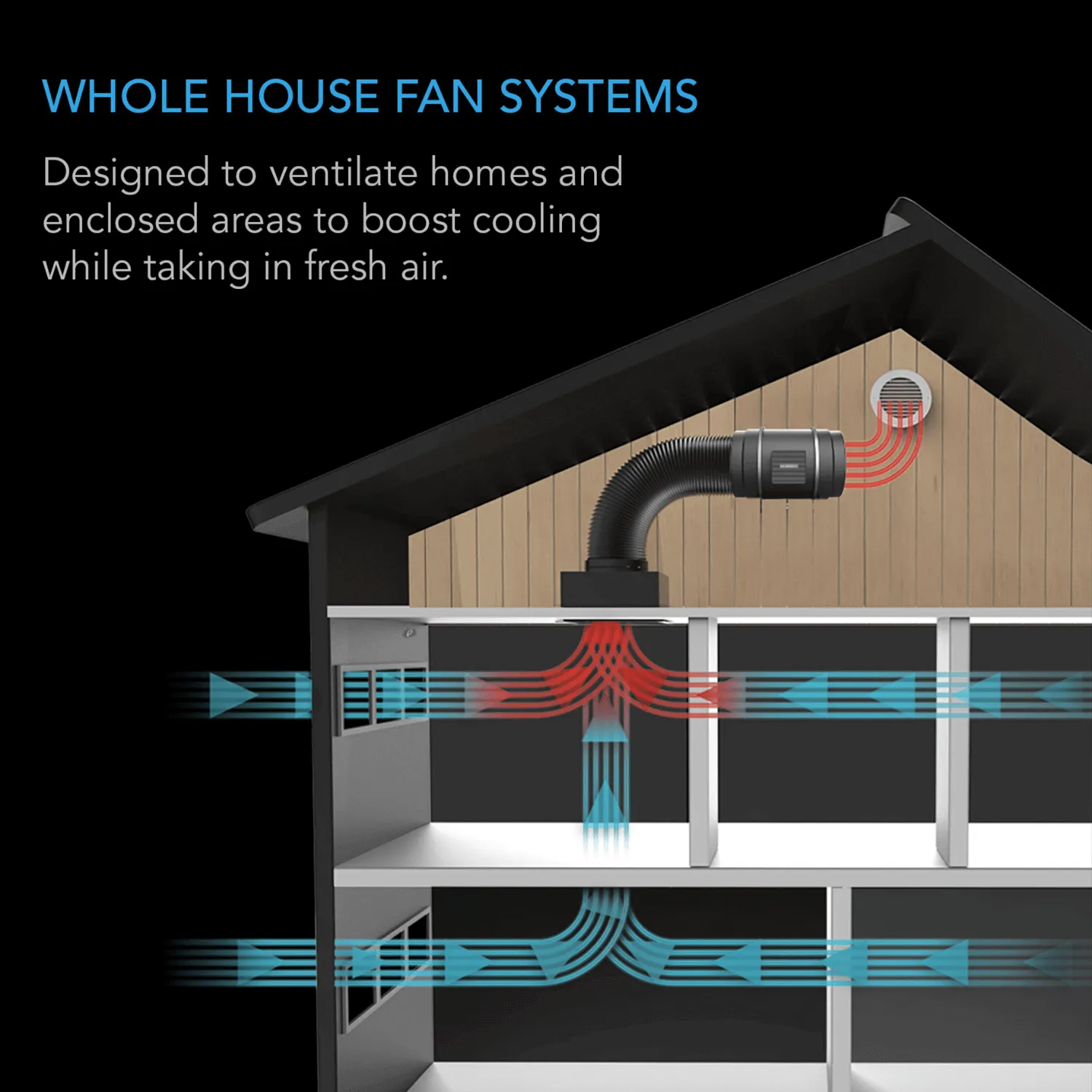

Whole House Attic Fan: This fan is designed to cool and ventilate entire homes by exhausting hot air from indoor spaces. It features a smart digital controller with temperature and humidity trigger programming, fan speed control, timers, and alarms. The fan utilizes a PWM-controlled EC motor, resulting in quieter and more energy-efficient operation than most other fans.

Unique Features: The fan is equipped with two-door shutters with a damper that blocks attic air from entering living spaces when the fan is not in use. The duct size is 10", with dimensions of 9.8 x 15.1 x 11.3 inches. The airflow capacity is 1201 CFM. It operates at a noise level of 48 dBA. It incorporates dual ball bearings for enhanced durability.

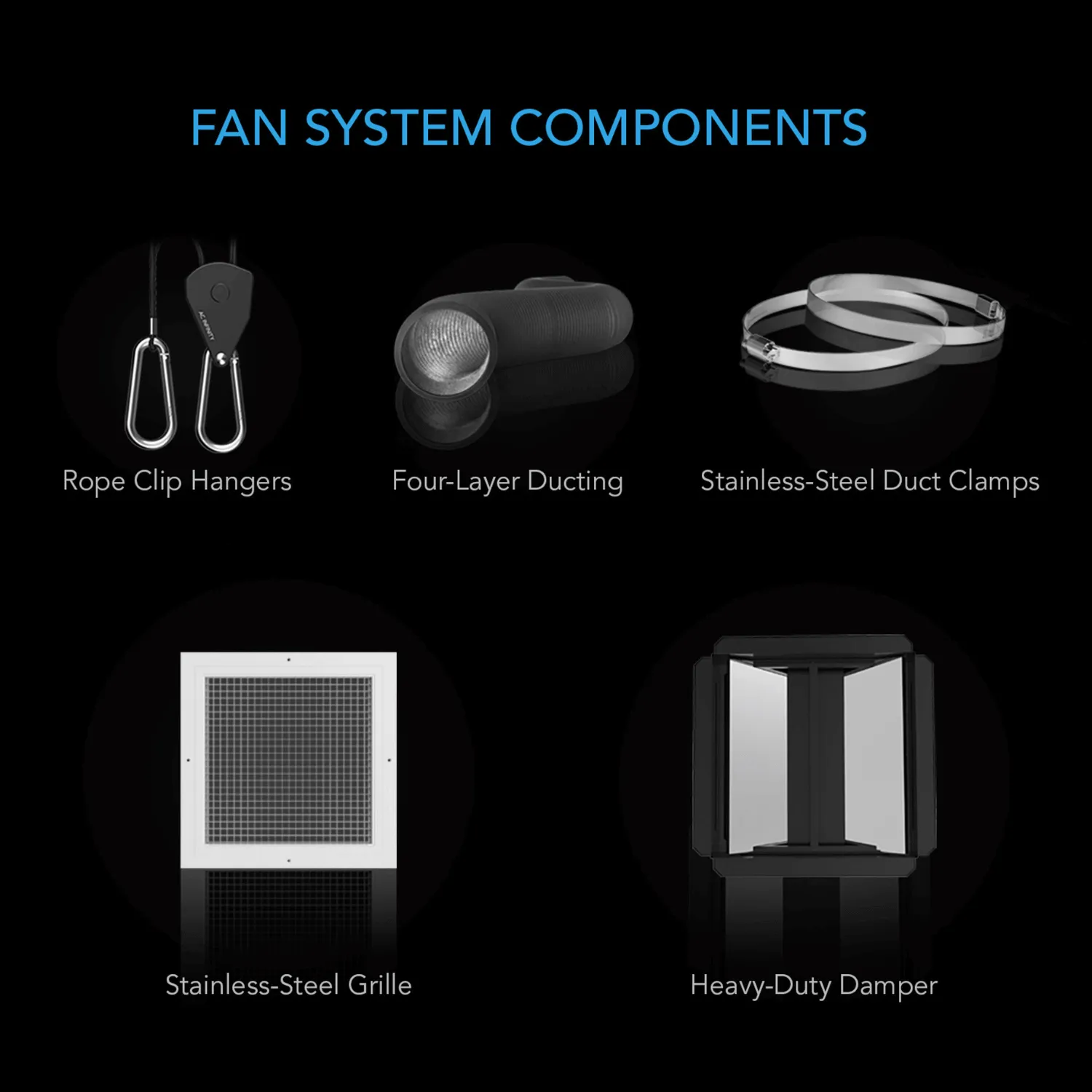

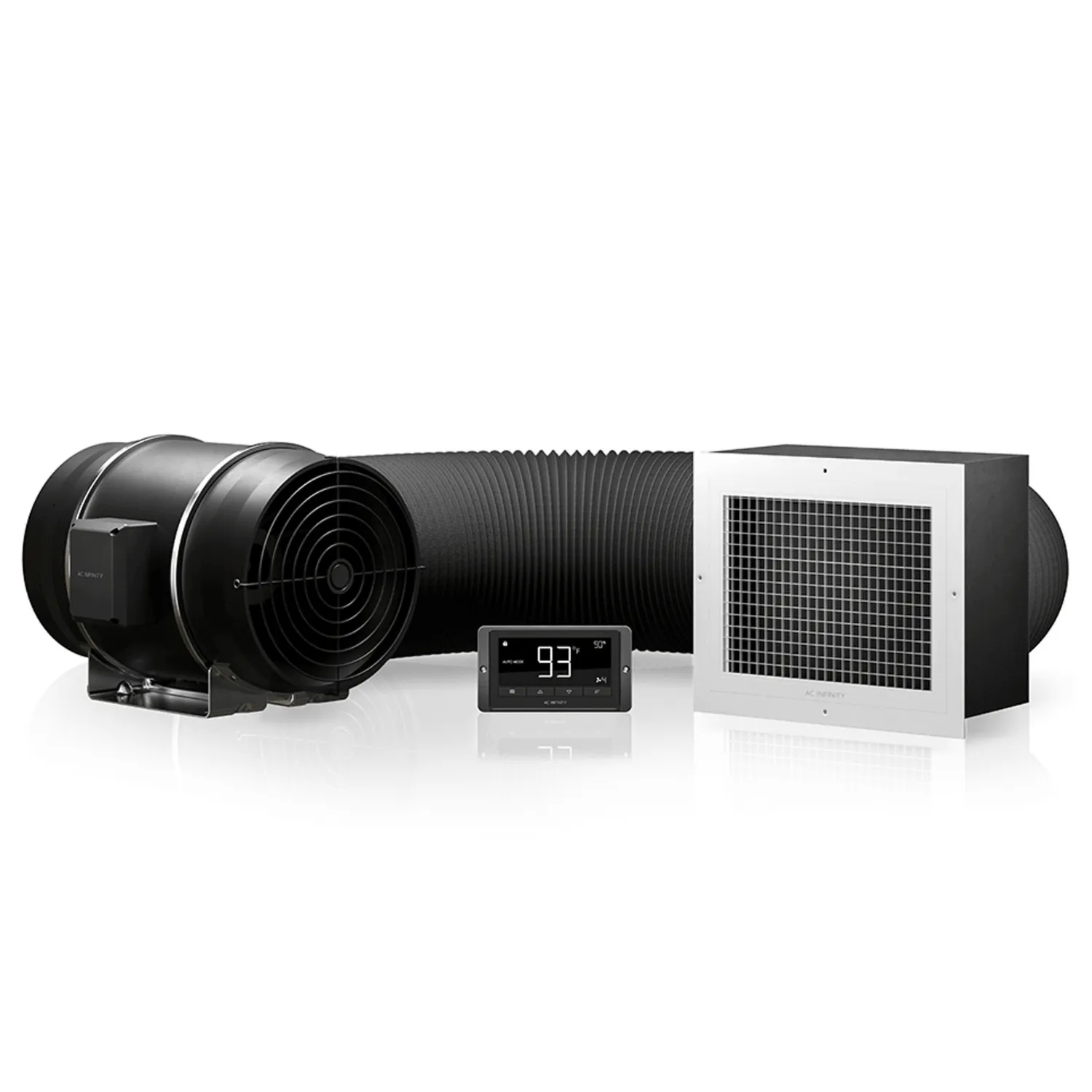

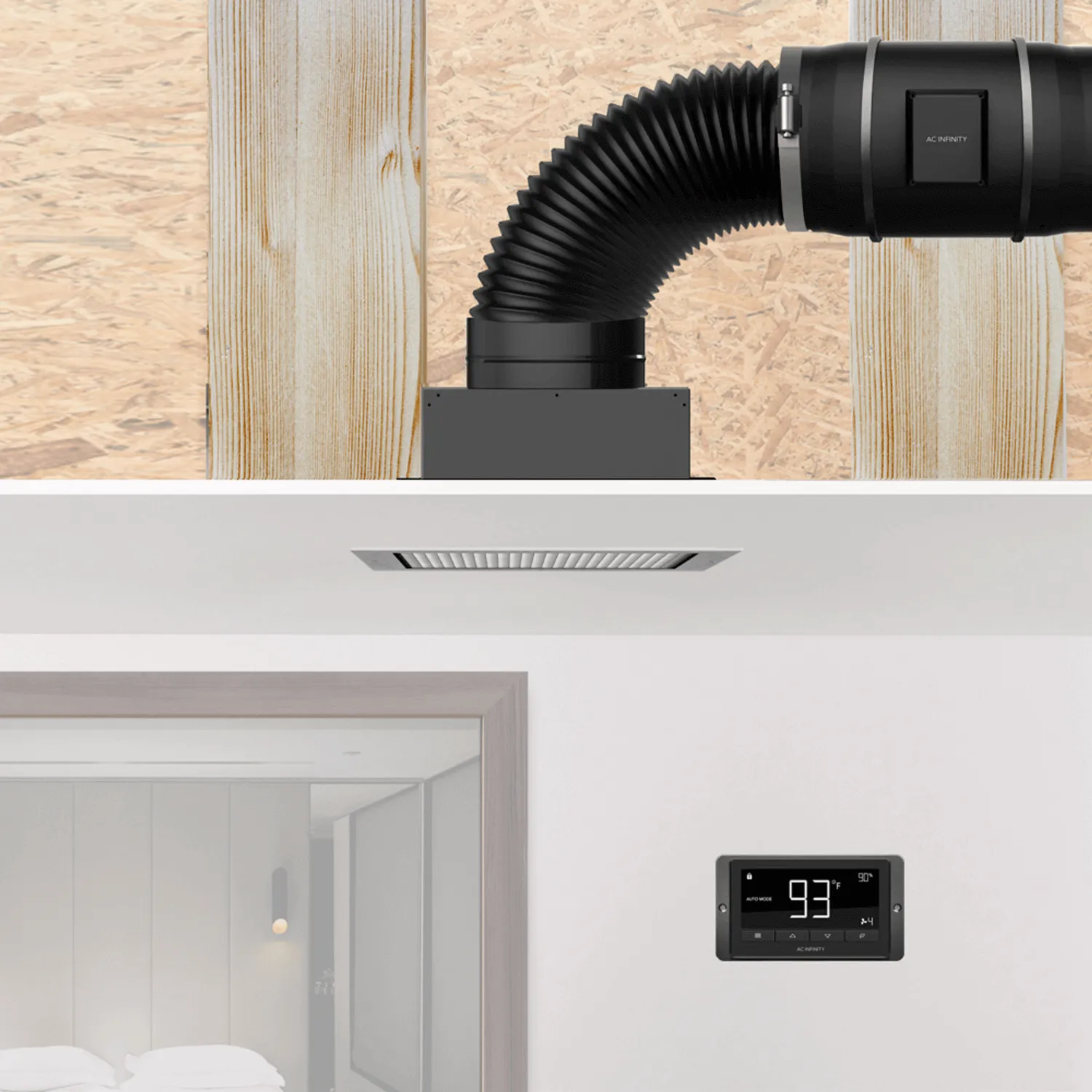

Product Description: This whole house fan system is designed to be installed in attics to keep homes cool. It exhausts hot air from indoor spaces while creating passive intake to pull in fresh air. The fan is controlled by an LCD digital controller, which features a smart thermostat with triggers, fan speed control, and status alerts. The fan runs efficiently and quietly on a PWM-controlled EC motor. The kit includes 4-layer ducting, stainless-steel duct clamps and grille, and a two-door shutter.

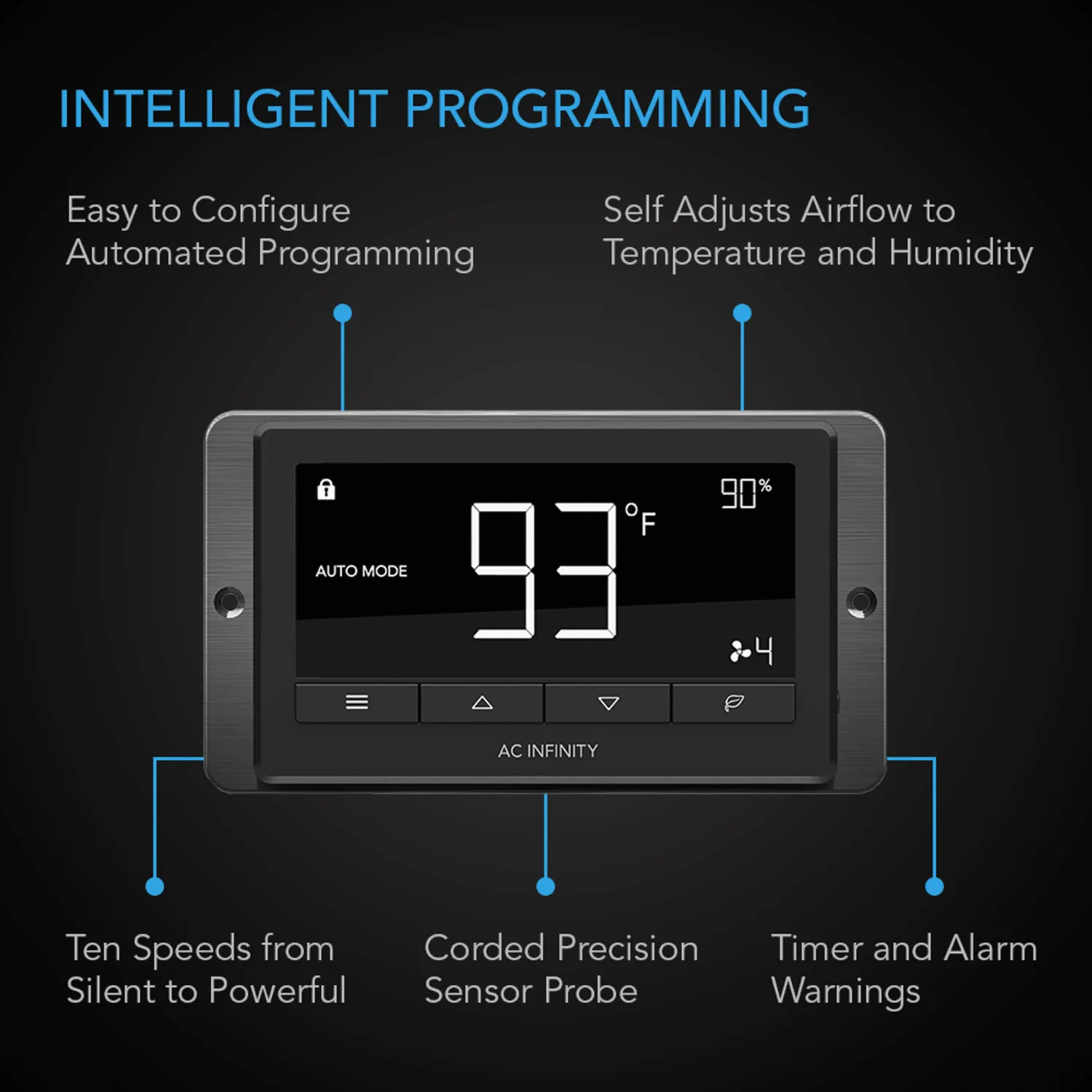

Intelligent Controller: The digital controller actively monitors temperature and humidity levels and has programmable triggers that activate the attic fan when your house gets too hot or humid. The fan can run continuously or on a timer to start and stop as needed. The fan speed can be customized between 0 and 10 to optimize cooling and noise level. The smart controller includes a 12 ft. corded sensor probe for temperature and humidity detection. It also has an LCD screen energy-saving mode, backup memory, and alert notifications.

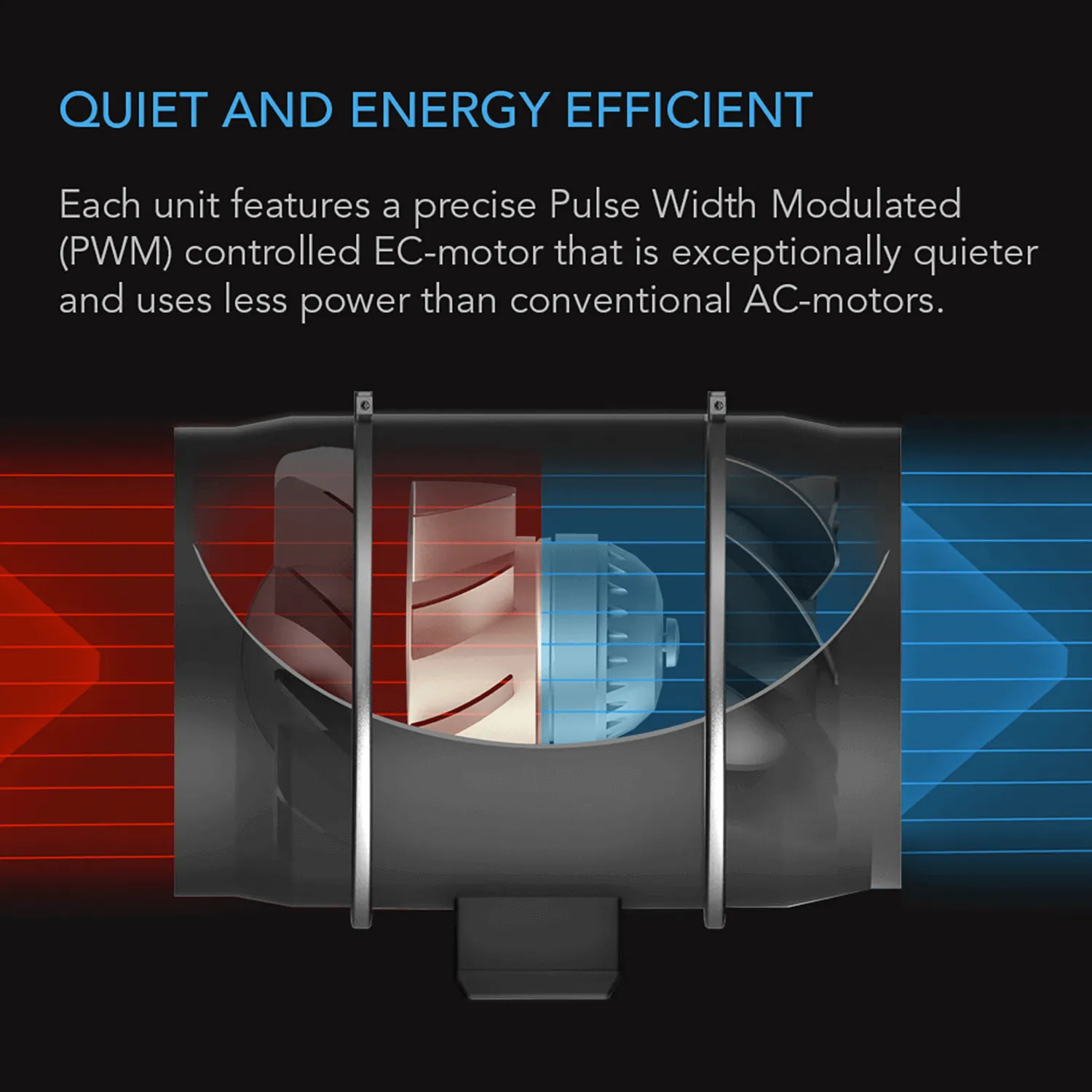

Efficient Performance: The PWM (Pulse Width Modulation) controlled motor not only operates the fan quietly but consumes up to 95% less power than air conditioning units. The attic fan boasts a 50,000-hour continuous run lifespan and uses dual ball bearings for omnidirectional mounting. It also sports an IP-44 rating, resisting dust and moisture while performing in most humid environments. The insulated damper uses gravity-fed shutters to close the opening when the whole house fan is not in use, keeping attic air from entering your home.

Specifications

Manufacturer: AC Infinity Inc.

Product Name: CLOUDWAY T10

Product Model: AC-CRT10

UPC Code: 819137021082

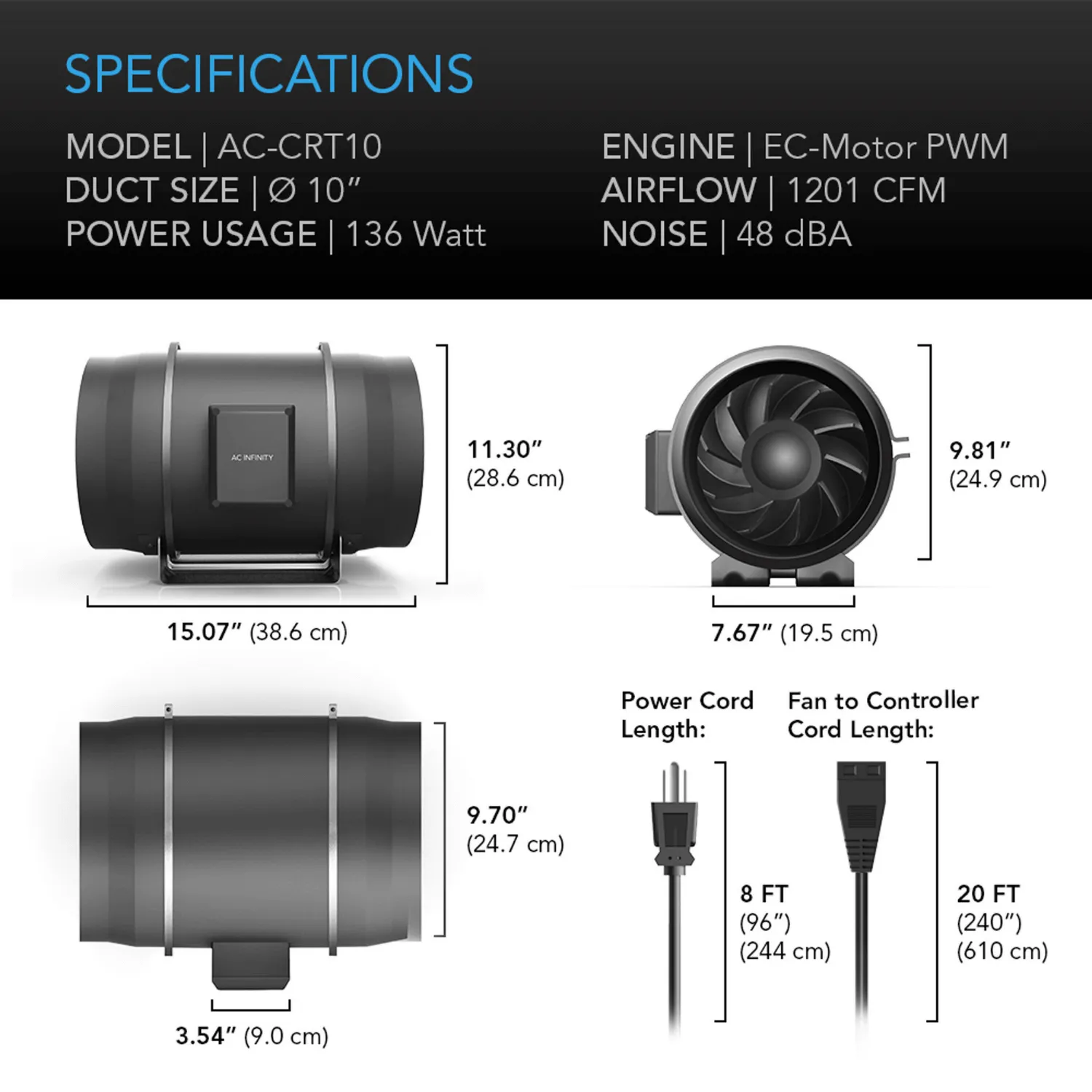

Product and Mounting Dimensions - Fan Unit

Duct Size: 10"

Duct Tube Length: 5 ft.

Total Dimensions: 9.81 x 15.07 x 11.30 in. (24.9 x 38.6 x 28.6 cm)

Mounting Hole-To-Hole Distance: 5.90 x 5.90 in. (15.0 x 15.0 cm)

Screw Hole Size: Ø 0.472 in. (Ø 1.2 cm)

Cord Length to Controller: 240 in. (20 feet)

Cord Length to Plug: 96 in. (8 feet)

Product and Mounting Dimensions - Controller

Total Dimensions: 5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm)

Hole to Hole Distance: 4.71 x 2.64 in. (12.0 x 6.7 cm)

Screw Hole Size: Ø 0.119 in (Ø 0.3 cm)

Display Size: 3.5 x 1.4 in. (9 x 3.5 cm)

Sensor Probe Length: 144 in. (12 feet)

Product Performance and Technical Specs

Total Airflow: 1201 CFM

Total Noise: 48 dBA

Static Pressure: 352 Pa

Voltage: 100-240V AC

Frequency: 50/60Hz

Max Power Draw: 255 W

Average Power Usage: 150 W

Current: 2.7 A

Power Connector Type: US Plug (NEMA 1-15 Type-A)

Wall Adapter Input: 100 to 120V AC

Operating Humidity: 35 to 85% RH

Operating Temperature: 0 to 140°F

Ingress Protection: IP 44

Fan Bearings: Dual Ball

Mounting Positions: Horizontal or Vertical

L10 Life Expectancy: 67,000 Hours

Fan Quality Approvals: CE, RoHS

Data Sheets

Download the product manual:

Download the CE Certification:

Download the RoHS Certification:
